Products Description

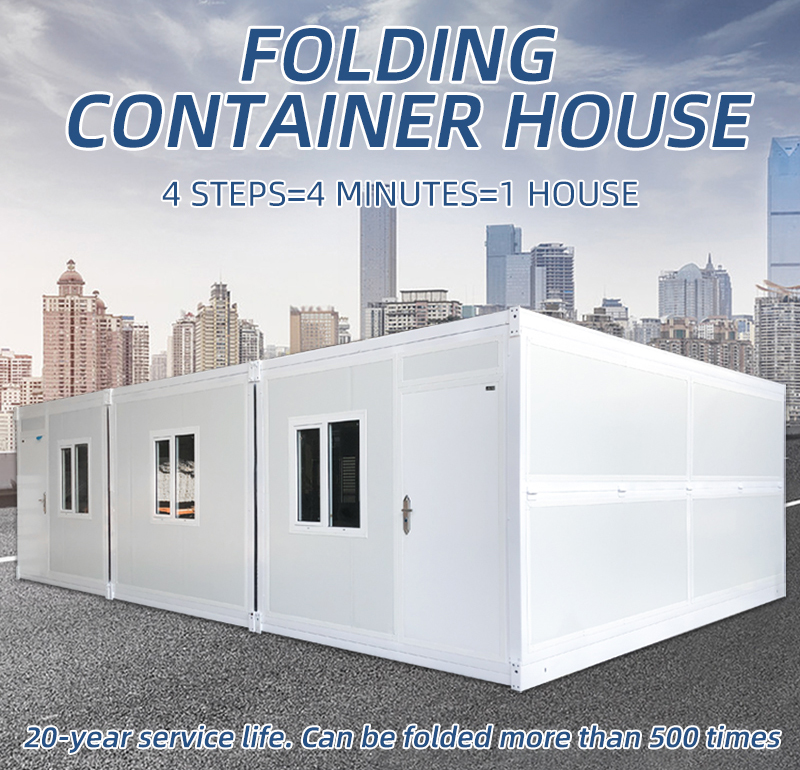

This folding container house can be folded repeatedly, recycled, in line with emergency living standards.It is widely used for labor camp, office, dormitories, and storeroom.
Advantages: 5 minutes quick installation, fireproof, waterproof, moisture proof, earthquake resistant, heat insulation, termite proof, 20 years service life. Foldable, reusable, safe, fully equipped, cheap and durable.
We have shipped prefab houses to more than 60 countries. Australia, New Zealand, the United States, Canada, France, Sweden, Qatar,Peru, Brazil, Malaysia, Philippines, India and other countries.
Product name | Fold able container house |
External dimensions | L5800mm * W2500mm * H2450mm |
Internal dimensions | L5650mm * W2350mm * H2230mm |
Folding size | L5800mm W2500mm H440mm |
Weight | 1.3T |
Roof load | ≧50kilograms/m2 |
flooring load | ≧150kilograms/m2 |
Aisle load | ≧200kilograms/m2 |
Wall side stress | ≧80kilograms/m2 |
Wall deformation coefficient | ≧300kilograms/m2 |
Seismic grade | 10-magnitude |
Wind loading | 11 level of wind loading |
Fire proof | A grade |
Top girder | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm（both sides） |
Bottom girder | Special shaped steel galvanized concave convex pipe 63mm*160mm*2.0mm（both sides） |
Top beam | Galvanized square pipe 50mm*50mm*1.8mm |
Front and rear end girder | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5（both sides） |
Sidewall frame | Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5（both sides） |
Bottom crossbeam | Galvanized square steel pipe 40mm*80mm*2.0mm" |
Folding hinge | Galvanized hinge 85mm*115mm*3mm（Shaft column304stainless steel） |
Floor | Grade A fireproof glass magnesium plate（15mm） |
Wall panel | Heat insulation rock wool color steel composite sandwich panel 0.326mm color steel plate / 50mm / 75mm |
Window | Aluminum alloy anti-theft integrated window (push-pull Series) 950mm*1200mm(With screen window) |
Security door | Special anti-theft door for folding container" 860mm*1980mm |
Electrical system | Circuit protector，Industrial plug and socket ，Single tube LED light， |

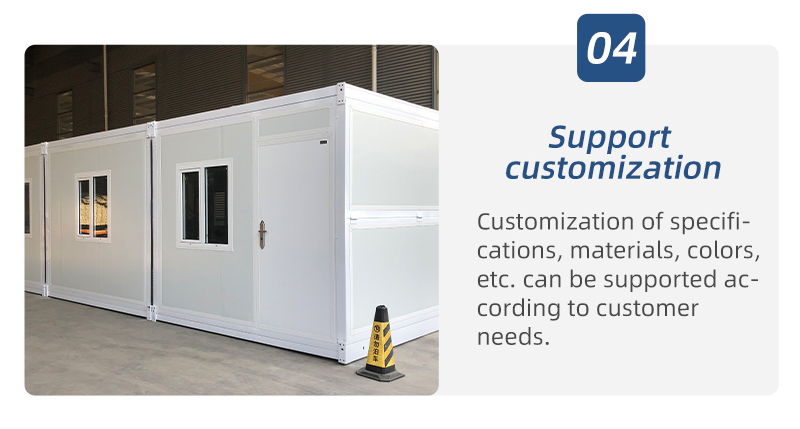

Customized service | Can be customized according to customer needs |

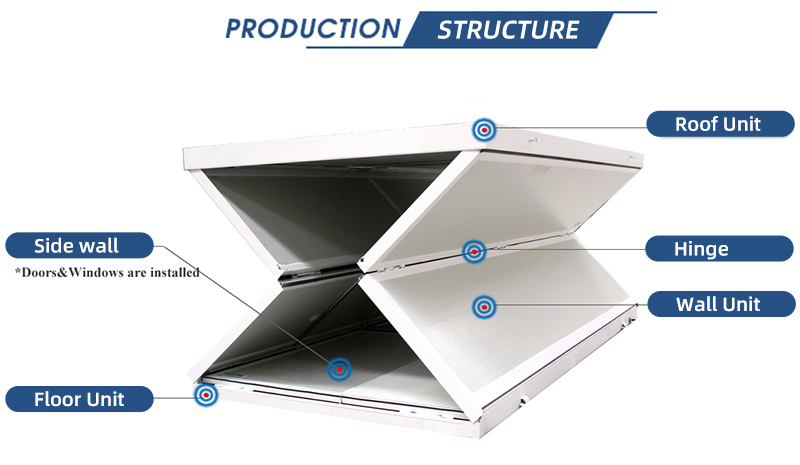

Details Images
Our Advantages

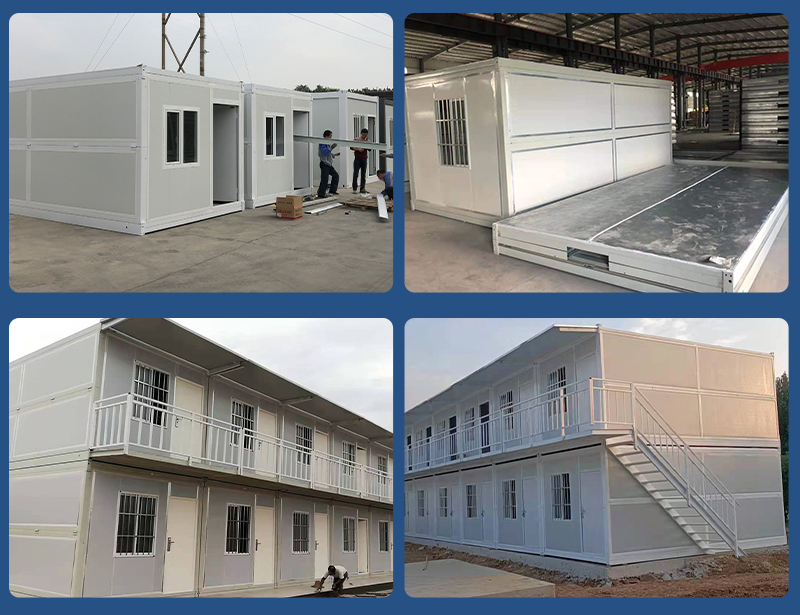

Internal Effect Display

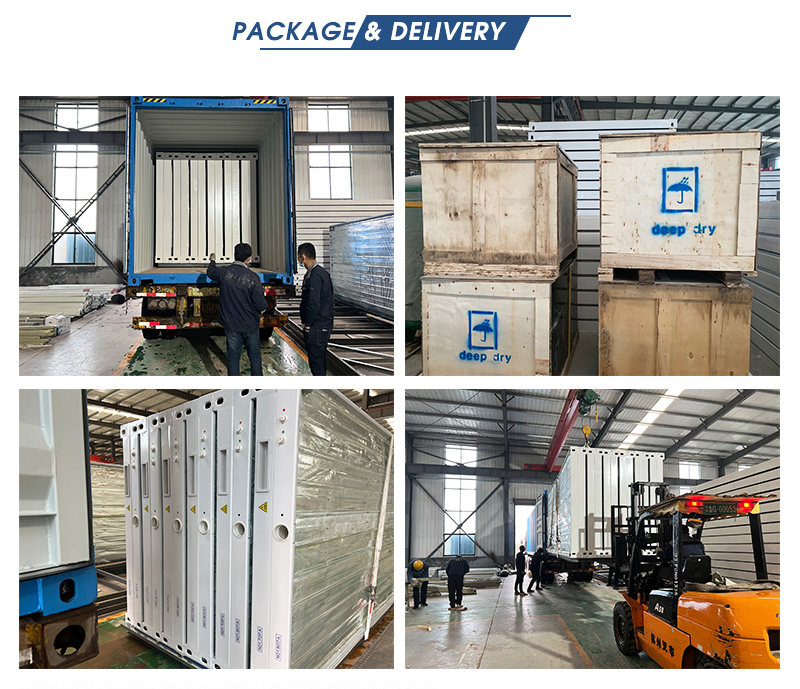

Product Packaging

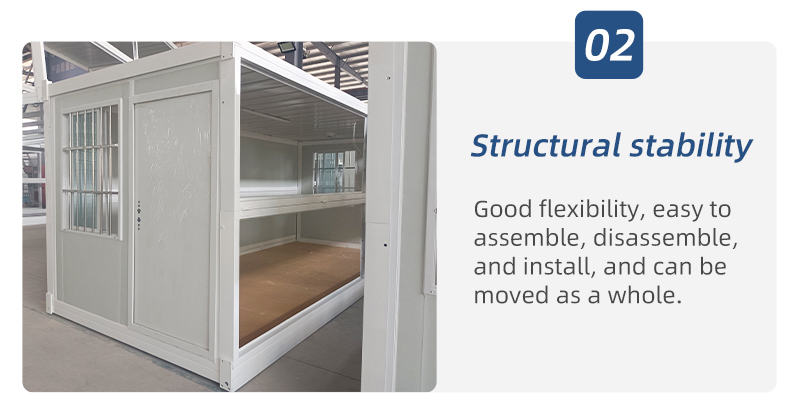

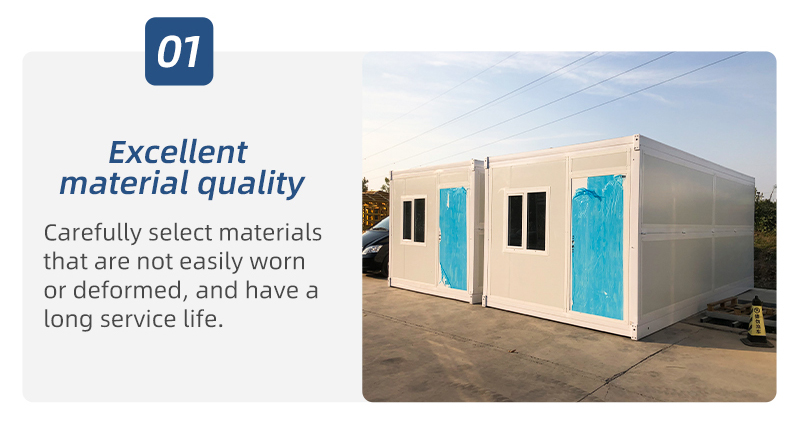

Product Advantage

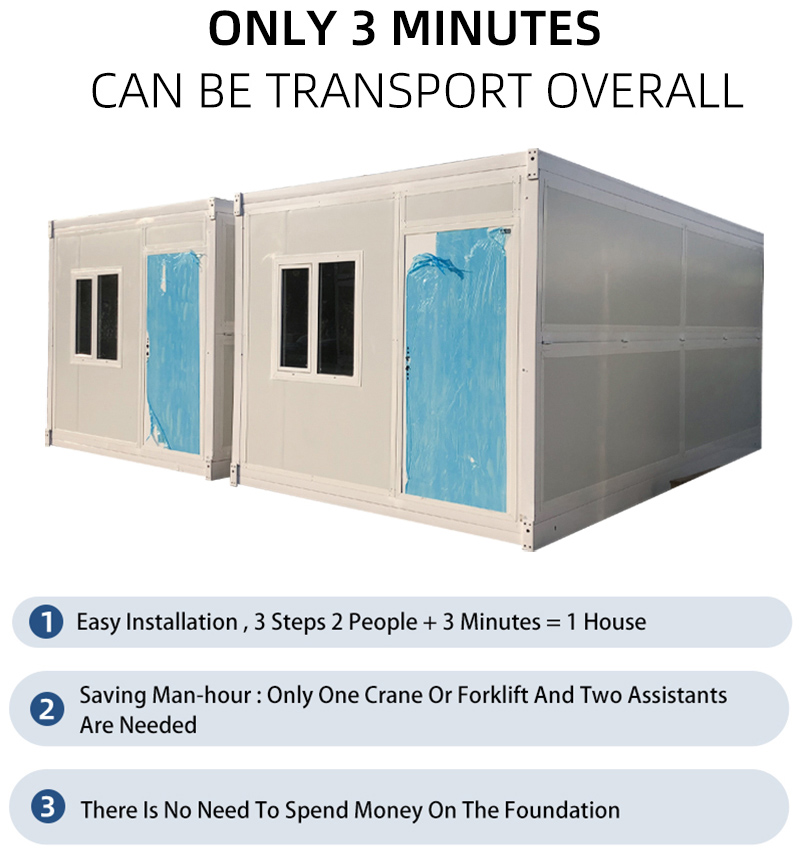

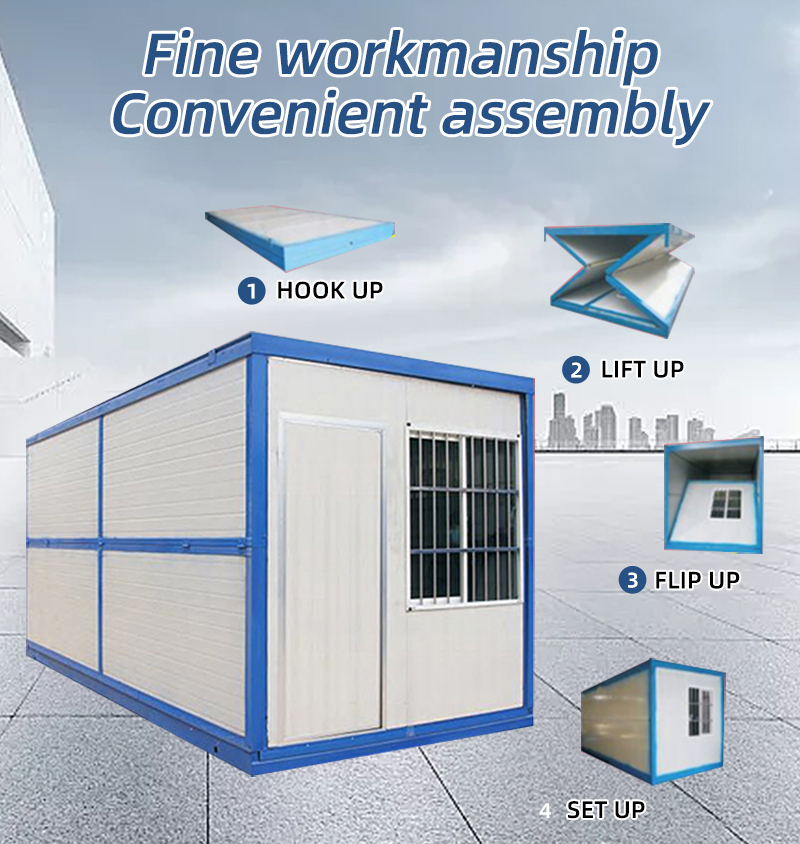

1. Convenient installation and transportation
The water and electricity lines have been prefabricated in the factory in advance and can be used at the destination without secondary decoration.
2. Durable and economy
Steel frame structure design,the structure adopts special cold formed galvanized steel components, seismic grade 8, wind resistance grade 12, service life of more than 20 years.

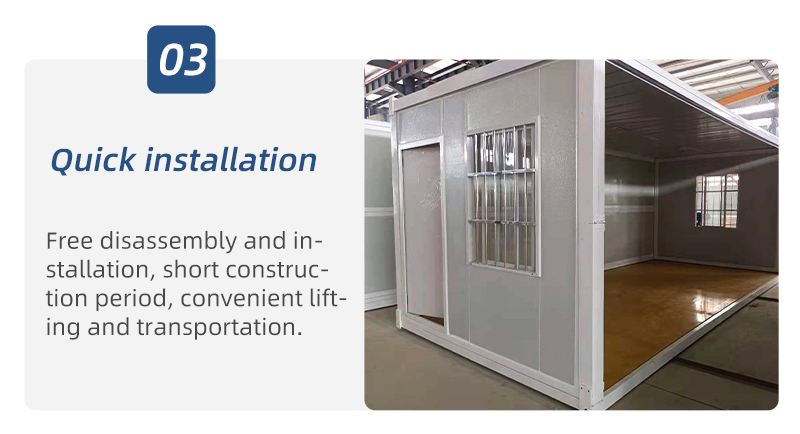

3. Fast installation, green environmental
Zero construction waste, fast construction and installation.
4. Heat insulation
The wall panel adopts double-sided sandwich panel to have good heat insulation performance.
5. Wide applications
Widely used in office, dormitory, meeting room, bathroom, kitchen, engineering camp, commercial room, public utility room, tourism, disaster relief resettlement room, temporary hospital isolation room etc.
