Prefabricated Camp Building
LJ Steel Structure, a brand of Steel Structure, Container house and Prefab house, is Trusted & Tested. As experts on Steel Structure Building system, LJ Steel Structure offers comprehensive ONE-STOP services, delivering customized solutions that encompass Consultation, R&D, Design, Manufacturing, Installation, Overseas project supervision and After-sales support
Key attributes
Other attributes
Application
Office Building
Material
Sandwich Panel
Product Type
Sandwich Panel Houses
Design Style
Modern
Warranty
1 Year
After-sale Service
Online technical support
Place of Origin
Shandong, China
Brand Name
LJ steel structure
Use
Office
Optional Accessories:
Canopy, Roof, Bathroom Fixtures, Handrails, and more.
Customizable Features:
Door and Window Size, Room Size, Color, Interior Partitions, and more.
Installation
4workers/1day/1block
Wall and Roof:
PPGI sanwich panel
framework:
Light steel structure
Layout design:
Standard or customized
Floor
One/two/three
Color
White
Use
Hotel,Villa,Apartment,Office Building,Hospital,School
Window
PVC Slidiing Window
Packaging and delivery
Port
qingdao/shanghai/tianjin
Supply Ability
Supply Ability
500 Pair/Pairs per Day
Show more
Lead time
Quantity (square meters) | 1 - 1 | > 1 |
Lead time (days) | 7 | To be negotiated |
Customization
Customized logo
Min. order: 1
Customized packaging
Min. order: 1
Graphic customization
Min. order: 1
For more customization details, message supplier
Know your supplier
Product descriptions from the supplier
Overview
20 years of experience in production, manufacturing, and export.
For more complete information, please click to consult.
Products Description
Charaterstic:

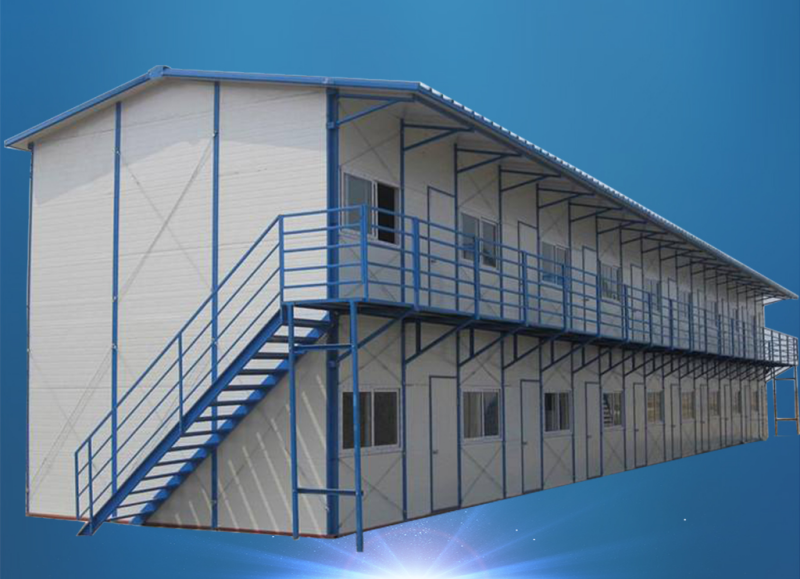

Prefabricated building / Prefab house is built with light steel frames and kinds of sandwich panels.
Basically there were 2 types of prefab house system: K type prefabricated house and T type prefabricated house. The K type prefabricated house is a modular building system, there were its standard dimensions, the width could be 5560mm, 6230mm or 7360mm, while the length could be N*K (K=1800mm), and the height could be 3P, 6P or 9P (P=950mm, 3P is single floor, 6P is two floors and 9P is three floors), while the T type prefab house will be much more customized, it means the T type house could be designed in any size as requirements.
Steel Column | 2C80*40*15*1.5 painting(K type) / Square tube (T type) |
Tri-angle beam | Pre-welded C80*40*15*1.3/U50*35*1.3 electro-Galv. |
First floor main beam | C80*40*15*1.5/U50*35*1.2 electro-Galv. |
First floor secondary beam | C80*40*15*1.3 electro-Galv. |
Roof purlin | L40*3 electro-Galv. |
Ground channel steel | C80*40*15*1.3 electro-Galv. |
Steel staircase | Square tube 30*30*2.0/40*40*2.0, 2.5mm checkered plate painting |
Steel Corridor | 1.8mm galv. steel plate/L40*3/tube 40*20*1.0 painting |
Roof panel | 50mm/75mm/100mm Fiberglass/Rockwool/EPS sandwich panel |
Wall panel | 50mm/75mm/100mm Fiberglass/Rockwool/EPS sandwich panel |
*Suspended ceiling (*Optional) | 6mm gypsum board with frame |
First floor board | 18mm plywood board |
*Floor leather (*Optional) | 1.5mm PVC floor leather |
*Electrical system (*Optional) | Cable/Lights/Switch/Socket/PDB |
*Sanitary facilities&plumbing (*Optional) | Ceramic toilet/washbasin/shower, input & output pipes |
Our Advantages
Details Images
Product Features：
All Lj Steel Structure prefab modular buildings can be configured with innovative technologies to increase energy efficiency and comfort:
* HVAC and ventilation systems
* Lighting and electrical distribution systems
* Communication systems
* Hard-wall systems and partitions
* Windows and doors
* Skylights that utilize natural lighting during the day and reduce overall energy usage
* Proprietary insulation systems increase energy efficiency while providing a comfortable living or working space
Prefabricated building by Lj Steel Structure offer many benefits and have been used for the following:
* Worker Dormitories, Staff Quarters, and Executive Dormitories
* Bunkhouses and Sleepers
* Fitness Centers
* Gymnasiums
* Weight Rooms
* Game Rooms
* Movie Theaters
* Commissary
* Cafeteria-Style Dining
* Food Storage, Preparation, and Serving Areas
* Mud Room
* Shower and Locker Rooms
* Medical Shelters and First-Aid Clinics
* Laundry Facilities
* Offices, Business Centers, Conference Rooms, and Administration Areas
* Security Areas

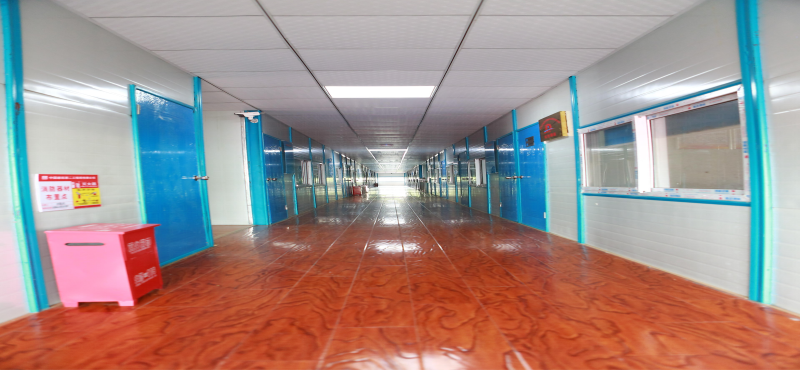

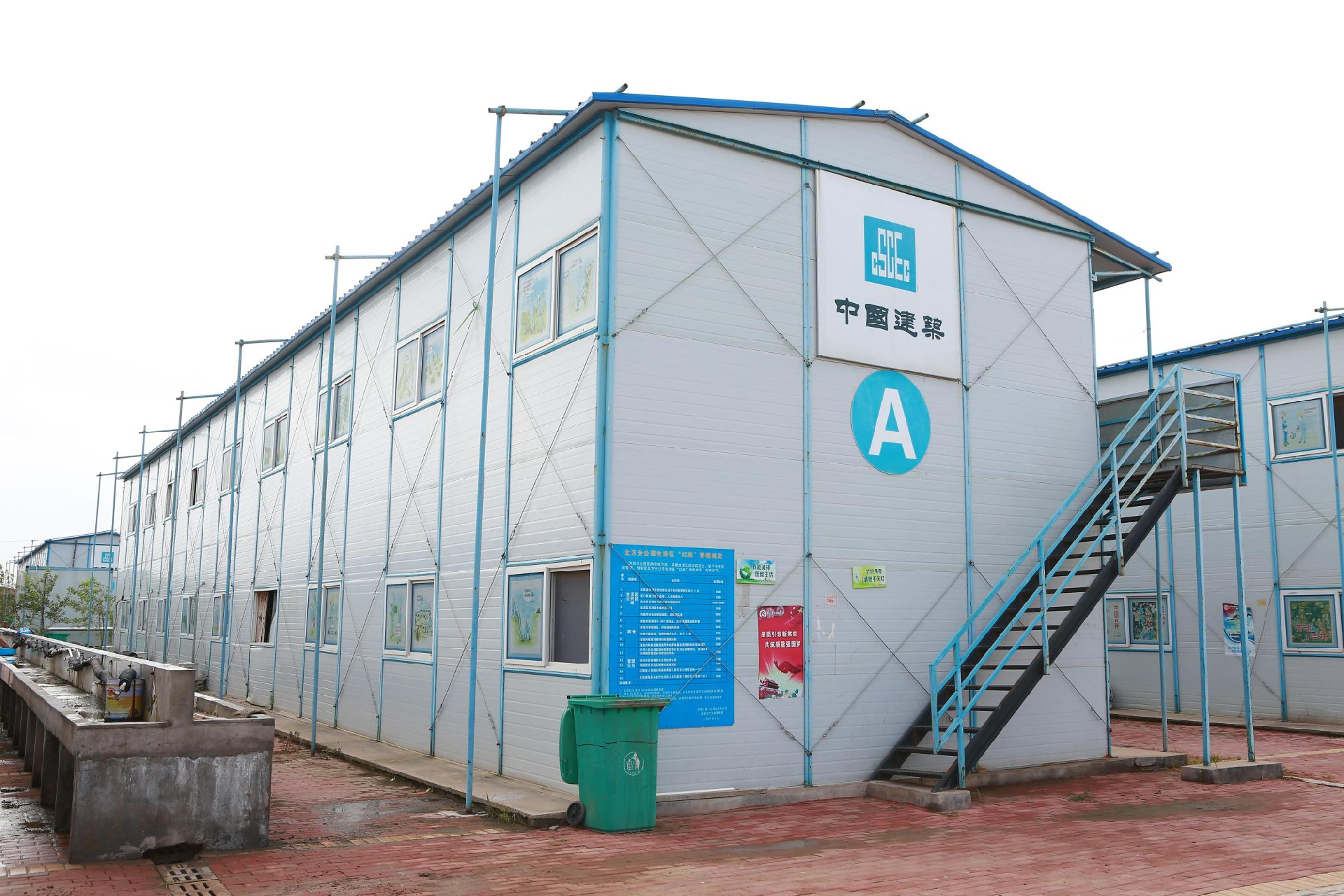

Real Time Disply
Product packaging
Company Profile
LJ Steel Structure, a brand of Steel Structure, Container house andPrefab house, is Trusted & Tested. As experts on Steel Structure Building svstem, LJ Steel Structure offerscomprehensive ONE-STOP services, delivering customized solutionsthat encompass Consultation, R&D, Design, Manufacturing, InstallationOverseas project supervision and After-sales support. We specialize in creation of hiqh-quality Steel structure Warehouse.Workshop, High-rise steel frame building and Container house for Labocamp, Worker dormitory, Site office, Shower container, Toilet containeretc. We provide our time-tested steel building to clients in the sectors ofOil & Gas, Mining, Energy, Infrastructure and Construction projects. LJSteel Structure built his reputation upon Profession,Reliabilitvy and Service. Headquartered in Weifang, China, with a factory area of more than66,000 square meters and a registered capital of CNY50 Million, aftelmore than a decade of development, LJ Steel Structure has strongechnical strength and comprehensive product lines, supported by ourdedicated teams with more than 10vears extensive knowledge of PrefabSteel Building, LJ Steel Structure has completed 100+ projects in morethan 30 countries. With the brand-building concept, LJ Steel Structurehas built long lasting partnerships with different international companiesas well as organizations & government.
