The steel frame of this prefab warehouse is unique in that it can be built within a short period of time without any trouble involved. Furthermore, this kind of storage center benefits from extremely low maintenance costs and can withstand even harsh weather conditions.

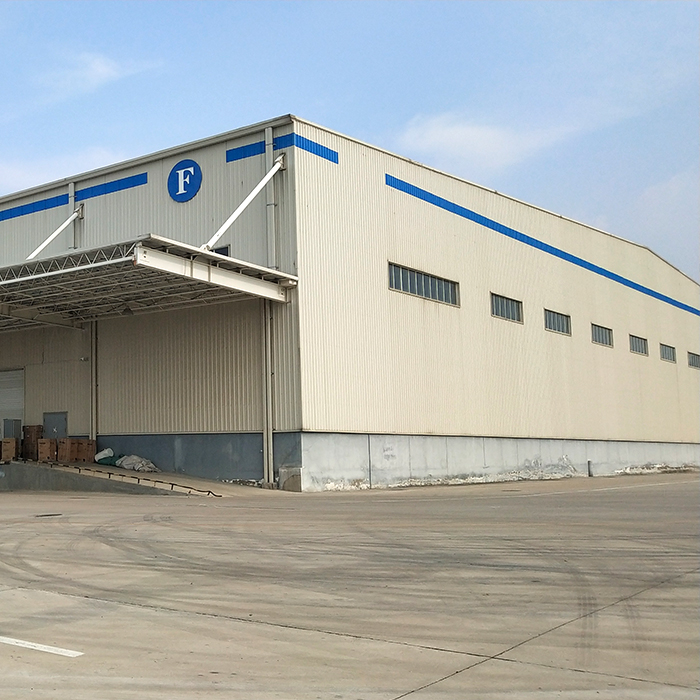

The Prefab steel structure warehouse is custom-designed to meet any industrial or commercial storage needs. This steel structure warehouse building supports any crane with different lifting capacities and can accommodate vehicular traffic on the ground level. The warehouse building is specifically designed for large and medium-sized warehouses. By enclosing the main steel frame with wall and roof, it can provide an enclosed structure for indoor storage of goods. A mezzanine area can be used as an office to meet the needs of material transportation, storage and processing.

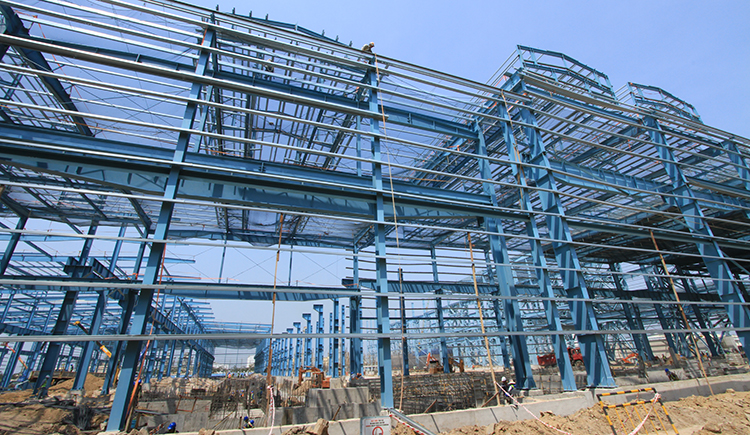

Steel structure warehouse building is structural frames made of primary steel columns, beam, and secondary structure, which can be used as enclosures to accommodate electrical and plumbing facilities. One main concept of steel structure warehouse buildings is that they use a wide span, so a single bay space can be divided into multiple small rooms without having an outer column for support. That advantage will save the construction cost, which is especially suitable for large warehouses and huge factories since it takes up less land than traditional construction methods.
The components of Steel Warehouse Building:
Steel structure warehouse buildings usually consist of steel beams, columns, steel trusses, and other components.The various components or parts are connected by welding, bolting, or rivets.
1. Main structureThe main structure includes steel columns and beams, which are primary load-bearing structures. It is usually processed from steel plate or section steel to bear the entire building itself and external loads. The main structure adopts Q345B steel.
2. SubstructureMade of thin-walled steel, such as purlins, wall girts, and bracing. The secondary structure helps the main structure and transfers the main structure’s load to the foundation to stabilize the entire building.
3. Roof and wallsThe roof and wall adopt corrugated single color sheets and sandwich panels, which overlap each other during the installation process so that the building forms a closed structure.
4. BoltUsed to fix various components. Bolt connection can reduce on-site welding, making the installation of steel structure easier and faster.
Steel warehouse buildings are widely used because of their simple construction, convenient and straightforward construction, short construction period, low labor cost, earthquake and wind resistance, energy saving, and environmental protection. In recent years, with the development of the economy, steel structure warehouses have been increasingly constructed and used and are deeply loved by owners. So, what should you pay attention to when building a steel structure warehouse? Some knowledge must be understood.
1. Site selection of steel warehouse building:The location of the warehouse should be a place with simple, open terrain and no accumulation of water to facilitate cargo transportation and site drainage. The aspect ratio of the warehouse is controlled at 1:1.5, which is more economical and reasonable.
2. Pay attention to the load-bearing design:When designing the warehouse, the load-bearing must be considered, combined with local climate conditions, and pay attention to the effects of rain, snow pressure, construction load, maintenance load, and strong wind. Ensure warehouse safety in extreme climates.
3. Pay attention to the lighting layout of the warehouse:The lighting design is reasonable and can save energy. Of course, a proper lighting layout must be carried out according to the nature of the goods that need to be stored. You cannot design too many glass windows if many goods must be kept from light.
